Temperature transmitter

Our company independently designs, develops, and manufactures the WLT-0807 series of intelligent temperature transmitters. These transmitters utilize the characteristic of platinum resistance changing with temperature change, following a certain function, to measure the temperature of the measured medium. The transmitter uses a high-precision thermistor as the sensing element and employs a high-stability circuit for signal processing to achieve continuous temperature measurement. It outputs industry-standard control signals and can also achieve display and remote functions.

Pressure transducer

The WLP-0601 series pressure transmitter is a pressure measurement device that integrates data acquisition, data processing, wired/wireless transmission, information storage, automatic detection, and fault diagnosis; it is a measuring instrument that converts pressure variables into a transmittable standard output, with high performance indicators, high stability, and reliability.

Differential pressure transmitter

The WLP-0601DPH series differential pressure transmitter is a pressure measurement device that integrates data acquisition, data processing, wired/wireless transmission, information storage, automatic detection, and fault diagnosis; it is a measuring instrument that converts differential pressure variables into a transmittable standard output, with high performance indicators, high stability, and reliability.

Integrated temperature and pressure transmitter

The WLPT series integrated temperature and pressure transmitter is a measurement device for temperature and pressure that integrates data acquisition, data processing, wireless transmission, information storage, automatic detection, and fault diagnosis; it is a metering instrument that converts temperature and pressure variables into a transmittable standard output, with high performance indicators, high stability, and reliability.

Single flange differential pressure transmitter

Our company independently designs, develops, and manufactures the WLP-0601DPH series of intelligent differential pressure transmitters. The central sensing unit adopts globally leading high-precision differential pressure sensor technology and packaging processes. The differential pressure sensor is located at the top of the metal body, away from the media contact surface, achieving mechanical and thermal isolation; the glass-sintered integrated sensor leads achieve high-strength electrical insulation with the metal substrate, improving the flexibility of the electronic circuit and its ability to withstand transient voltage protection. Platinum-grade accuracy reaches ±0.05%, and the unidirectional overpressure can reach up to 25 MPa. Excellent static pressure performance, with optimal static pressure error controllable within ±0.05%/10 MPa, minimal temperature influence, optimally controllable within ±0.04%/10K.

Solar-powered integrated temperature and pressure transducer

Our company independently designs, develops, and manufactures the WLPT-1001 series integrated temperature and pressure transmitter. It uses an integrated temperature and pressure sensor design, capable of simultaneously collecting and measuring temperature and pressure data. It has the ability to transmit the measured medium temperature and pipe pressure in real-time to the data acquisition system. It is a measuring instrument that converts temperature and pressure variables into a transmittable standard output. The hardware circuit consists of circuit units such as a high-precision temperature sensor, signal processing circuit, low-power processor system, wireless communication module, and power management. Collected data undergoes hardware and software filtering and internal correction calculations to reduce errors caused by the measured medium, ensuring the accuracy of temperature measurement. It has advantages such as high precision, corrosion resistance, impact resistance, vibration resistance, and high stability; the signal processing circuit is composed of the latest ultra-low power processor, signal processing chip, and power management chip. The instrument has a refined, compact, and beautiful appearance, and is simple to use. The transmitter uses a unique "buffering, adsorption, venting, and suppression" lightning protection and anti-interference circuit.

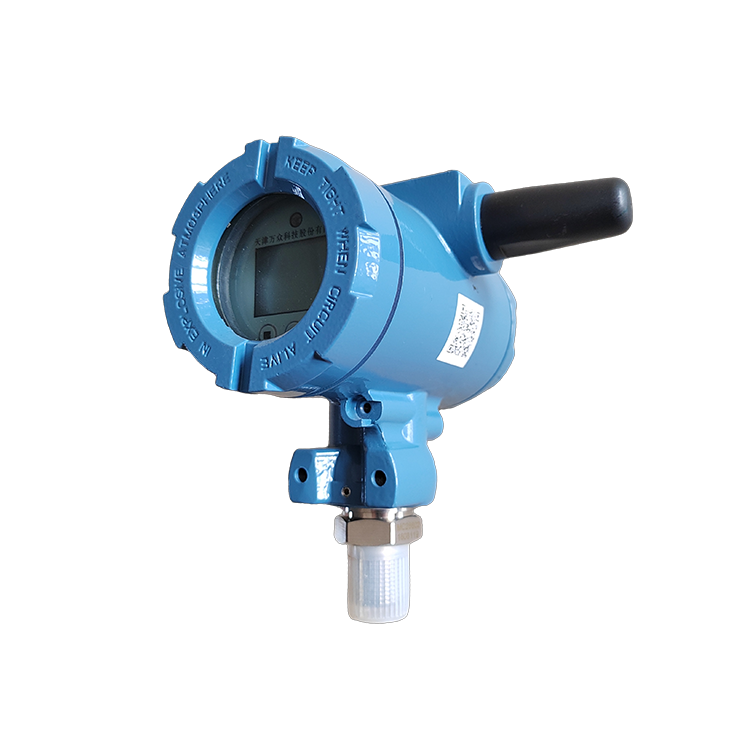

Wireless communication pressure transmitter

Our company independently designs, develops, and manufactures the WLP-0601 series of intelligent pressure transmitters. The central sensing unit adopts globally leading high-precision silicon pressure sensor technology and packaging processes. The single-crystal silicon pressure sensor is located at the top of the metal body, away from the medium contact surface, achieving mechanical and thermal isolation; the glass-sintered integrated sensor leads achieve high-strength electrical insulation with the metal substrate, improving the flexibility of the electronic circuit and its ability to withstand transient voltage protection. Platinum-grade accuracy reaches ±0.05%, and the unidirectional overpressure can reach up to 70 MPa. Excellent hydrostatic performance, with hydrostatic error optimally controllable within ±0.05%/10 MPa, minimal temperature influence, optimally controllable within ±0.04%/10K.

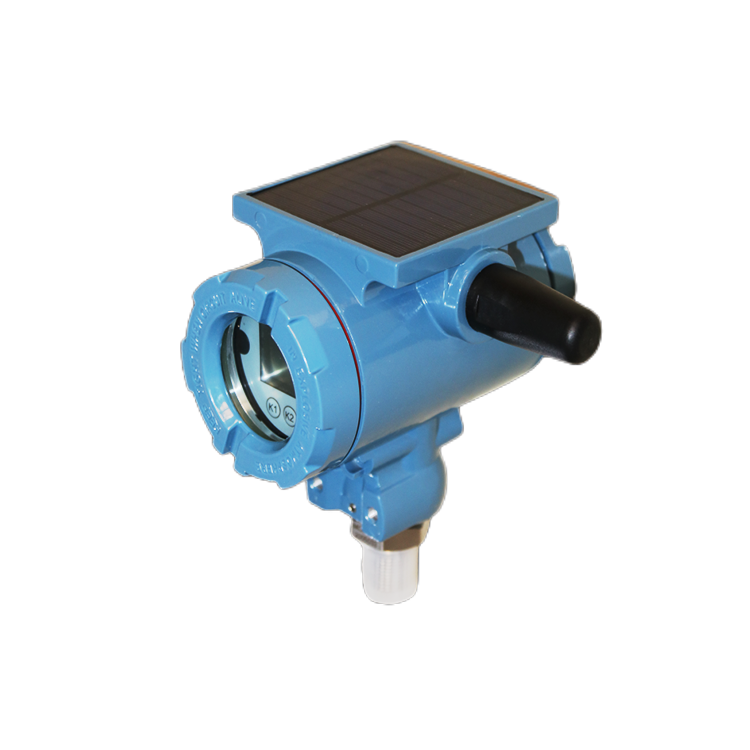

Solar-powered wireless pressure transmitter

Our company independently designs, develops, and manufactures the WLP-0601 series of intelligent pressure transmitters. The central sensing unit adopts globally leading high-precision silicon pressure sensor technology and packaging processes. The single-crystal silicon pressure sensor is located at the top of the metal body, away from the media contact surface, achieving mechanical and thermal isolation; the glass-sintered integrated sensor leads achieve high-strength electrical insulation with the metal substrate, improving the flexibility of the electronic circuit and its ability to withstand transient voltage protection.

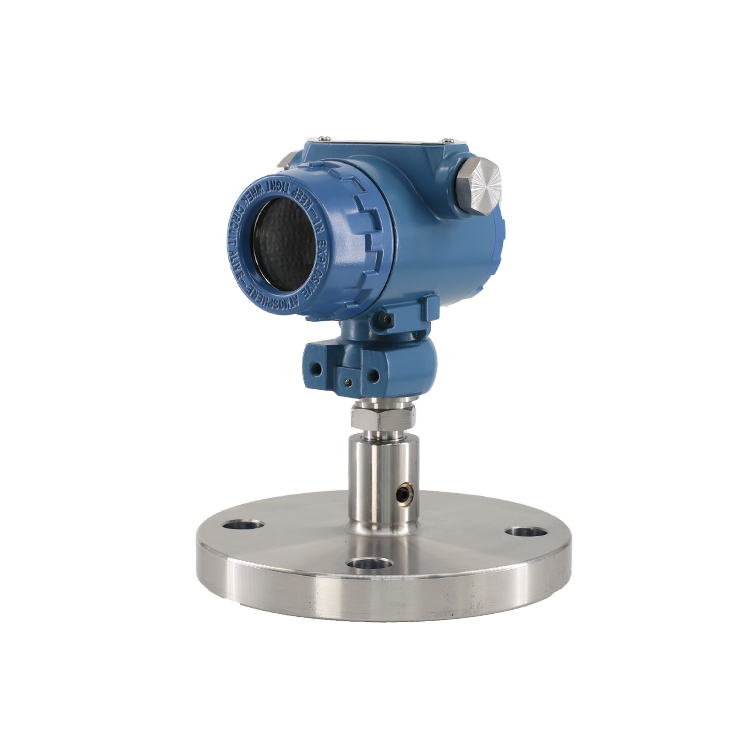

Single flange high-precision intelligent pressure transmitter

Our company independently designs, develops, and manufactures the WLP-0601 series of intelligent pressure transmitters. The central sensing unit adopts globally leading high-precision silicon pressure sensor technology and packaging processes. The single-crystal silicon pressure sensor is located at the top of the metal body, away from the medium contact surface, achieving mechanical and thermal isolation; the glass-sintered integrated sensor leads achieve high-strength electrical insulation with the metal substrate, improving the flexibility of the electronic circuit and its ability to withstand transient voltage protection. Platinum-grade accuracy reaches ±0.05%, and the unidirectional overpressure can reach up to 70 MPa. Excellent hydrostatic performance, with hydrostatic error optimally controllable within ±0.05%/10 MPa, minimal temperature influence, optimally controllable within ±0.04%/10K.

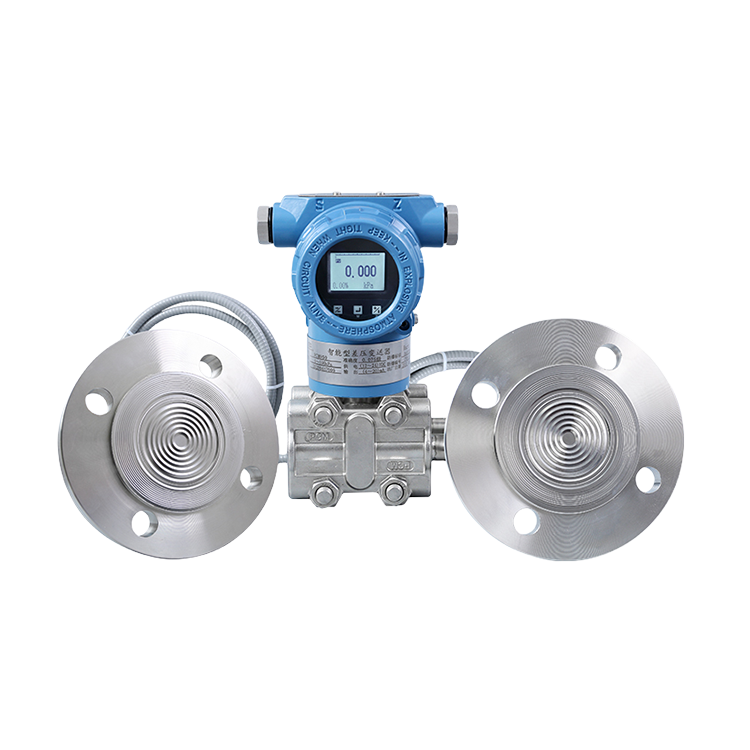

Double flange differential pressure transmitter

Our company independently designs, develops, and manufactures the WLP-0601DPH series of intelligent differential pressure transmitters. The central sensing unit adopts globally leading high-precision differential pressure sensor technology and packaging processes. The differential pressure sensor is located at the top of the metal body, away from the media contact surface, achieving mechanical and thermal isolation; the glass-sintered integrated sensor leads achieve high-strength electrical insulation with the metal substrate, improving the flexibility of the electronic circuit and its ability to withstand transient voltage protection.

Temperature and humidity transmitter

Our company independently researches, designs, and manufactures the WZ-THT-1000 temperature and humidity transmitter. Its sensor is imported, offering a wide detection range and accurate measurement of temperature and humidity from -40℃ to 85℃ and 0％RH to 100％RH. The circuit uses temperature compensation, ensuring stable and reliable product performance. It is especially suitable for the petroleum and petrochemical industries.

Hygrometer

Our company independently researches, designs, and manufactures the WZ-THT-2000 thermometer. Its sensor is imported, offering a wide detection range and accurate measurement of temperature and humidity from -40℃ to 85℃ and 0％RH to 100％RH. The circuit uses temperature compensation, ensuring stable and reliable product performance. It is especially suitable for the petroleum and petrochemical industries.
